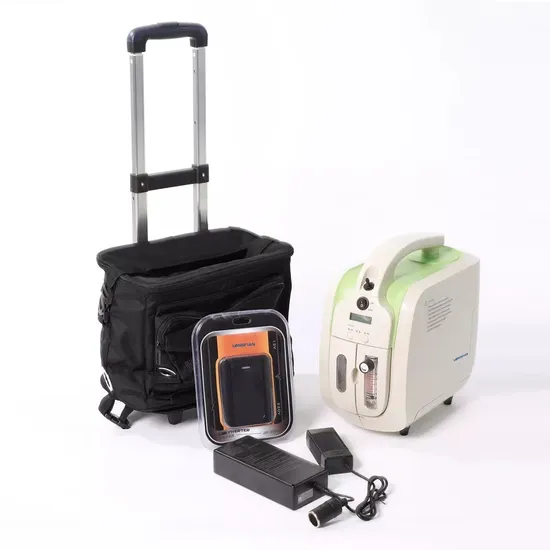

Portable 5L Oxygen Concentrator with Pulse Flow Jay-1000p

Basic Info

Model NO.	JAY-1000P
Application	Home, Medical Institution
Scale	Small
Product Name	Portable Oxygen Concentrator
Oxygen Flow(L/Min)	1~5
Warranty	12 Months
Lead Time	Within 7 Days
Certification	CE, ISO13485
Type	Breathing Apparatus
Transport Package	Strong Packing
Specification	CE ISO TUV
Trademark	PIOWAY
Origin	China
Production Capacity	8000 Units / Month

Product Description

Portable 5L Oxygen Concentrator With Pulse Flow JAY-1000P

JAY-1000P Portable 5L Oxygen Concentrator With Pulse Flow
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation. Specific adsorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbed material.

Product Name	Portable oxygen concentrator JAY-1000P
Oxygen Flow Rate	Five pulse dose setting
Oxygen Concentration	93%(+-3%)
Battery Duration	1.5-5.5 hours
Charge Time	2 hours
Net Weight	1.98kgs (including battery)
Dimension	199*183*86mm
Operating Altitude	Within 4000m

Detailed Images

Our Workshop
